After 11,000 miles of pulling with the trailer low in the front and the truck dragging its butt on the pavement I decided to get some air springs to level out the system. I made an appointment at The Spring Works in Grand Junction and they installed some Firestone Ride Rite air springs.

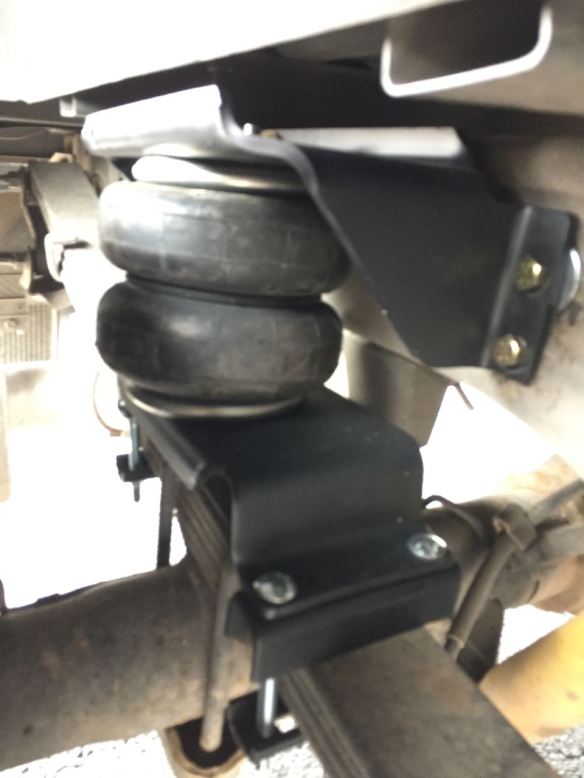

New Air Springs

I’ve decided to set the system up so that the ride height in the rear is the same loaded as it is when the truck is empty. Then add in the tension of the Wt Transfer hitch to bring the front down to where it was with the truck unloaded as per the Wt transfer hitch instructions.

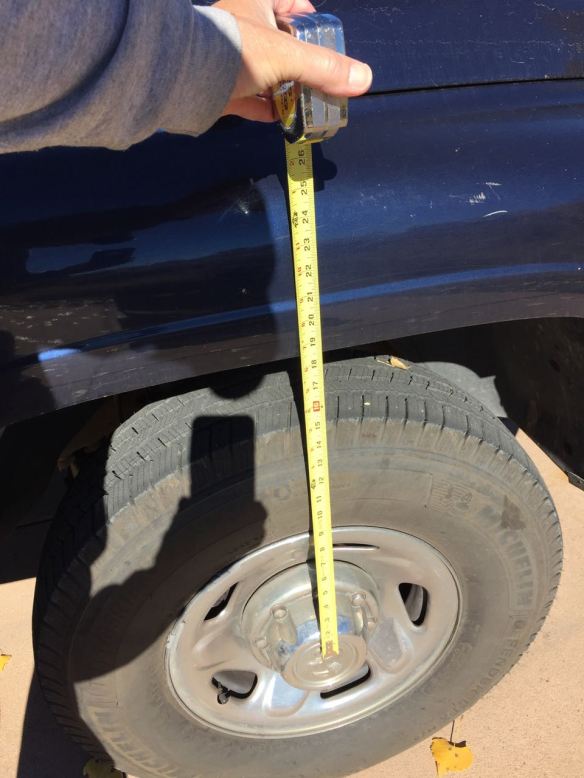

I started by measuring from a grove on the hub-cap to the edge of the fender well on all four wheels. The measurements are not all the same. There is about 1/2” difference from side-to-side. I suspect age as a factor in that. The front is about 2” less than the back which is to be expected.

Before air springs the trailer caused the truck to squat about 3.5” in the rear. After air springs (with 60 psi loaded. 50 psi unloaded) the air springs get the rear of the truck back up to where it belongs. Engaging the Wt Transfer torsion bars brings the front down to within 1/2” of where it was unloaded.

On the test drive the rear of the truck stayed put. It bobs WAY less than before and the ride up front is better. The front still bobs up-and-down when we drive over a rough spot in the road, but the energy needs to go somewhere.

For those of you keeping score at home this brings the truck’s trailer-towing modifications and repairs to about $12,000.

ॐ

Awning support pulled loose

Our coach has a 20-foot Dometic awning on it. I’m not a huge fan of awnings in the west because thunderstorms have a habit of ripping them off of coaches. The shade is nice, but as soon as the wind kicks up, or if you walk away for 10-minutes, the awning gets torn off by a micro-burst.

A 1/4″ luan & glass skin won’t hold the lag-bolts

That said, our awning has a mid-span support because it’s so long and that awning support got pulled loose while doing its job. There is suppose to be a plywood backer (according to Outdoors RV) behind the skin into which the coarse-thread lag-bolts are screwed, but alas my coach is missing that piece so the lag-bolts just blew the glass skin and the luan plywood out.

Dometic’s latest patch for awning support 2.0

Outdoors RV sent me the latest version of the mid-span support (Thanks Todd!) and that hardware package has a 3/16” aluminum backer plate which gets pop-riveted (oscar rivet) to the luan/glass skin then the coarse-thread bolt goes thru that. It looks like version 2 is better than version 1, but not enough better for me to mess with it.

Long bolts go thru the wall

Plenty of room behind the oven to hide the hardware

I opted for the heavy-duty custom version. The awning support is on a section of the wall which backs up to the microwave cabinet inside the coach. So, I pulled the microwave out and drilled thru the wall, thru a 1/2” plywood backer plate I made, and installed thru-bolts from the awning support to the plate inside with toggle bolts (I used them because Peter gave me some. Save a trip to the store).

Lots of sealant

The backer plate rests on the top-plate of the wall and picks up that structure as well as the luan, foam, luan, glass sandwich of the wall assembly. I sealed the holes and the outside of the awning support with copious amounts of clear silicone. I’m fair-certain the awning support will stay put for awhile this time.

Big out-of-focus toggle nuts

After having revised the awning support I now wonder what the awning arms are affixed to. Is there anything backing up those lag-bolts? I hope so, but likely not.

As a side-note when I pulled the microwave from the cabinet I discovered that the front feet were missing from the oven. The only thing holding the weight of the oven-front were the tiny-little screws in the trim cover. Sad. Very sad. I made some new feet before the oven went back into the cabinet.

.
