Repairs & Mods Montage

Stage direction: This will flow better if you imagine it’s a time-lapse video blog. Imagination engaged!

Tiffin’s Rube-Goldberg device for opening the coach door

I’ve been helping my friends Jim and David fix-up stuff around their houses the past two weeks. They have a nice property with a house, an accessory dwelling unit (granny unit, garage apartment, et al), and a place to park three RV’s. I helped them spruce up the house to rent it out, we changed out the bathroom faucet, replaced the dishwasher, and fixed some electrical glitches

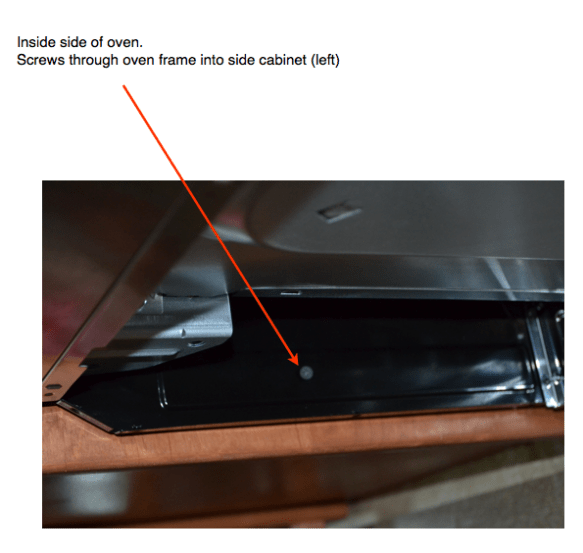

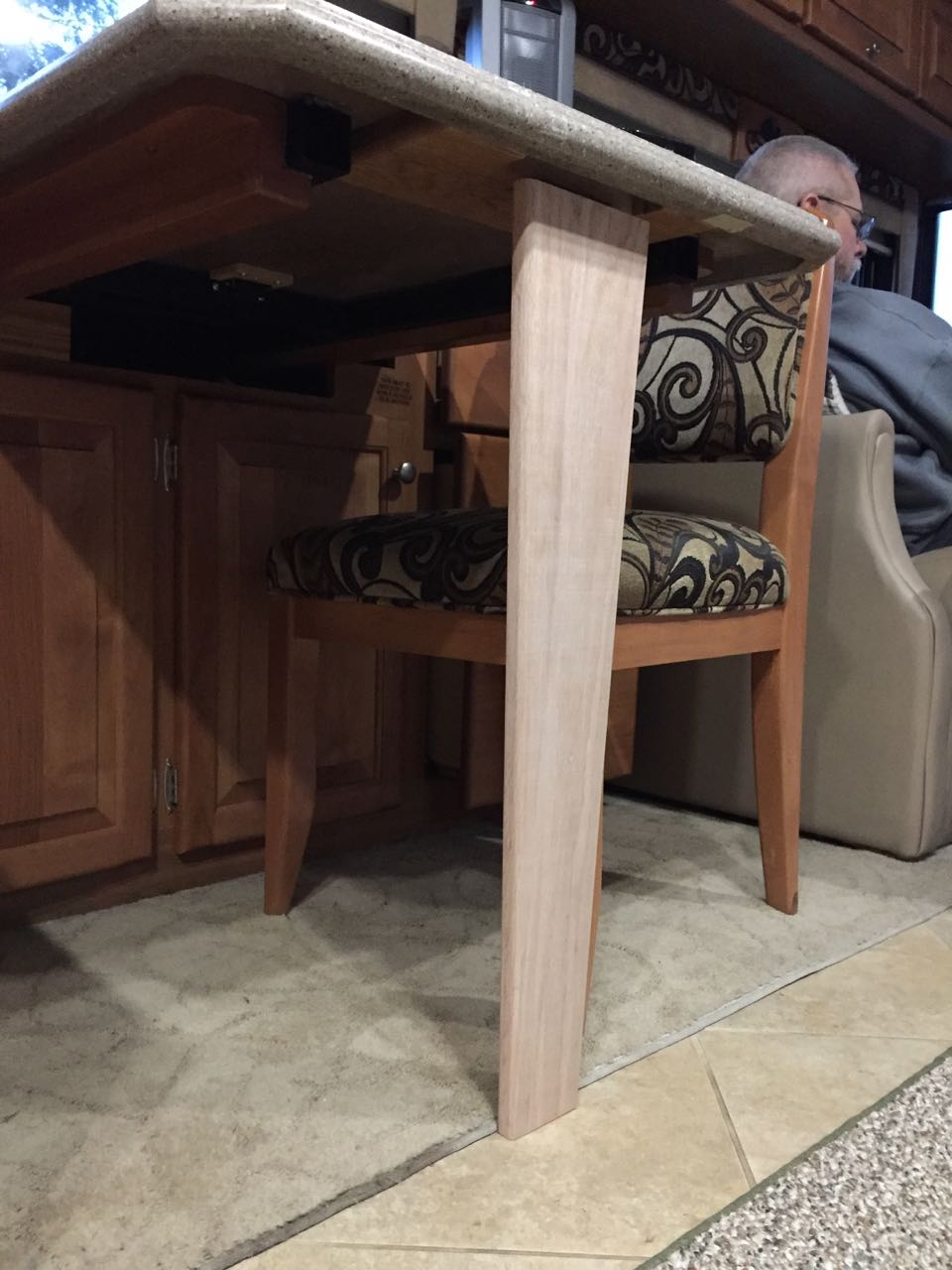

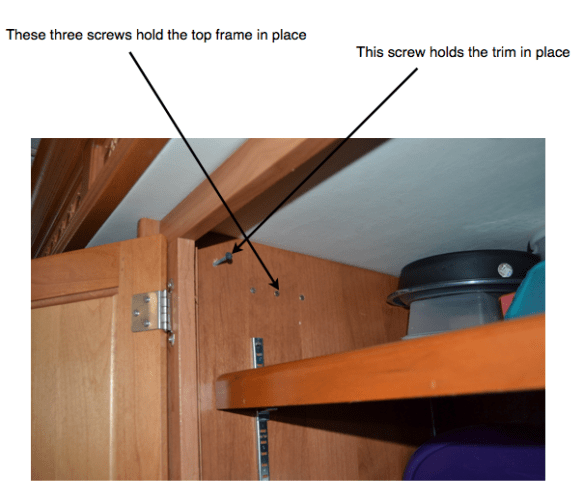

Yundi’s RV got new LED lighting throughout, and Jim & David’s RV got a new convection/ microwave oven, new kitchen faucet, and some decorative trim.

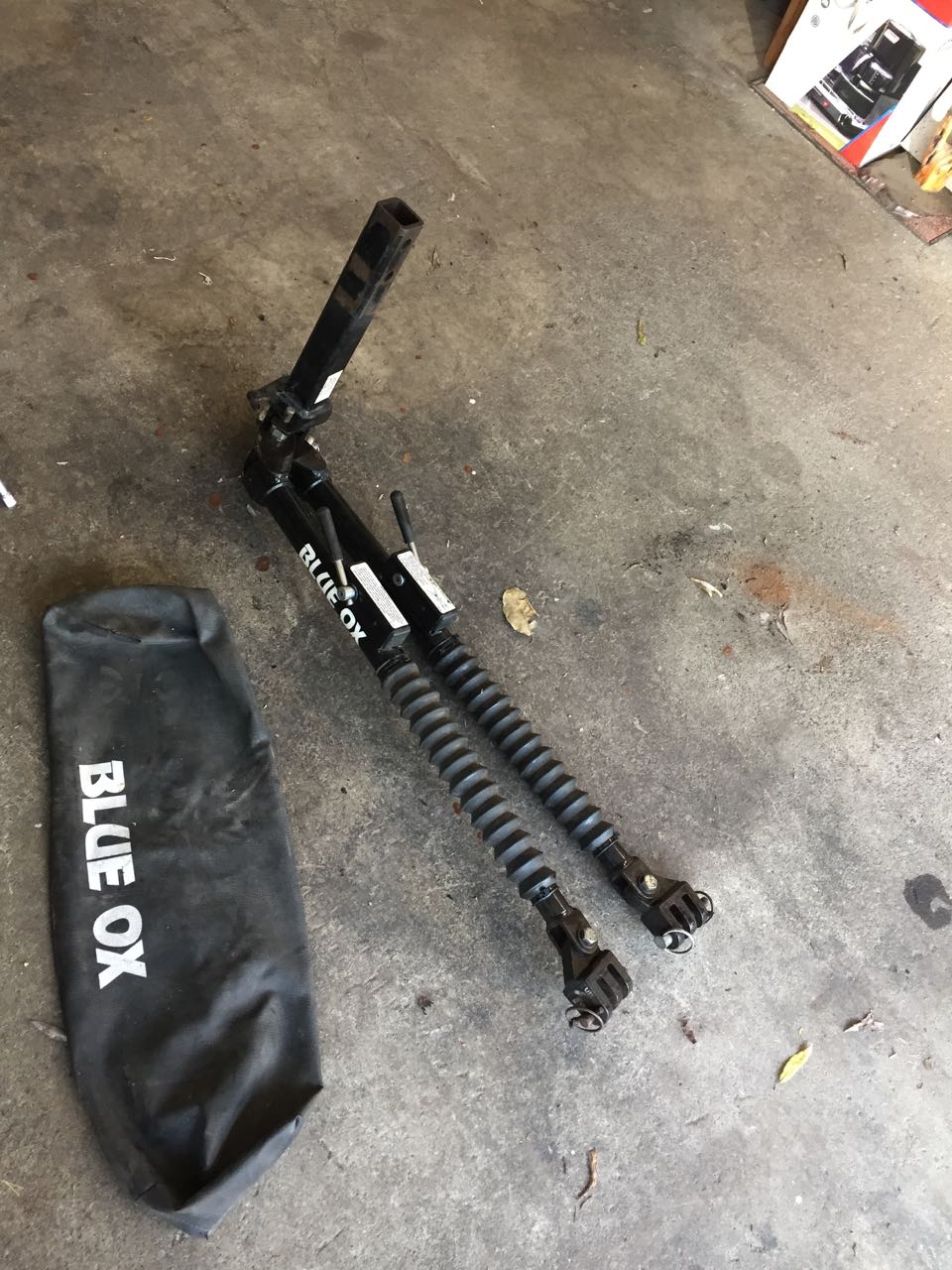

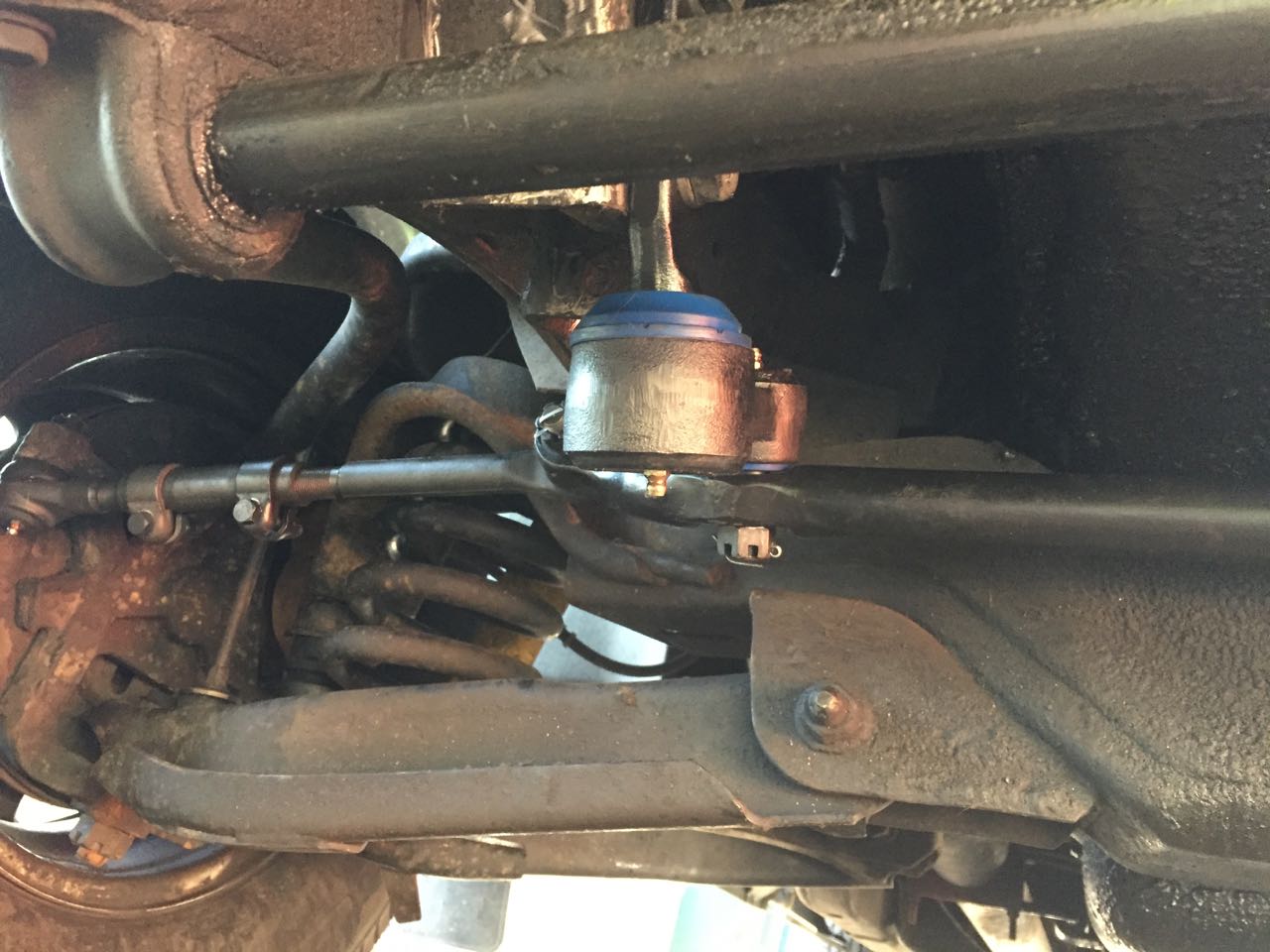

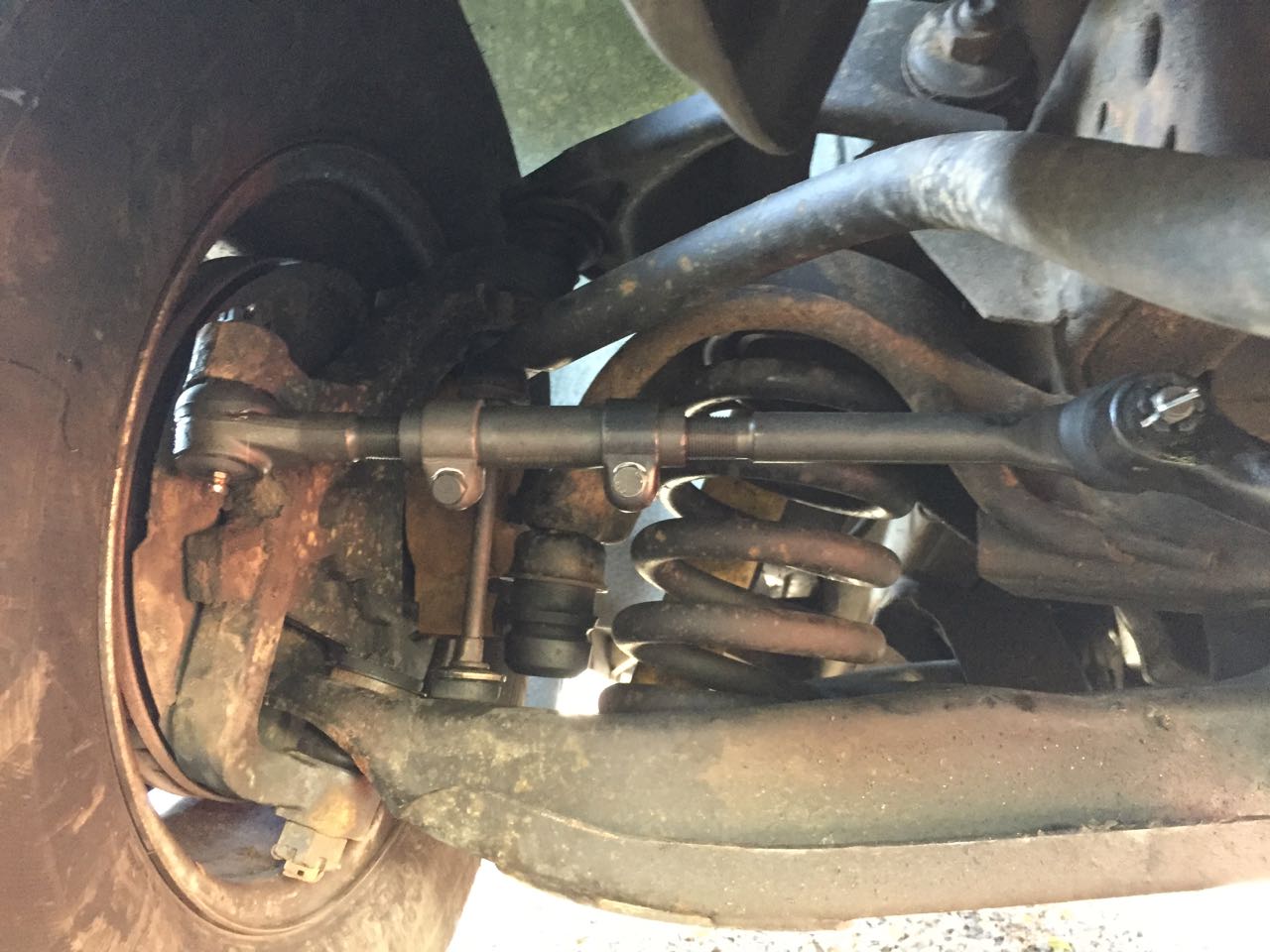

Tow bar stopped working so we rebuilt it
All better!

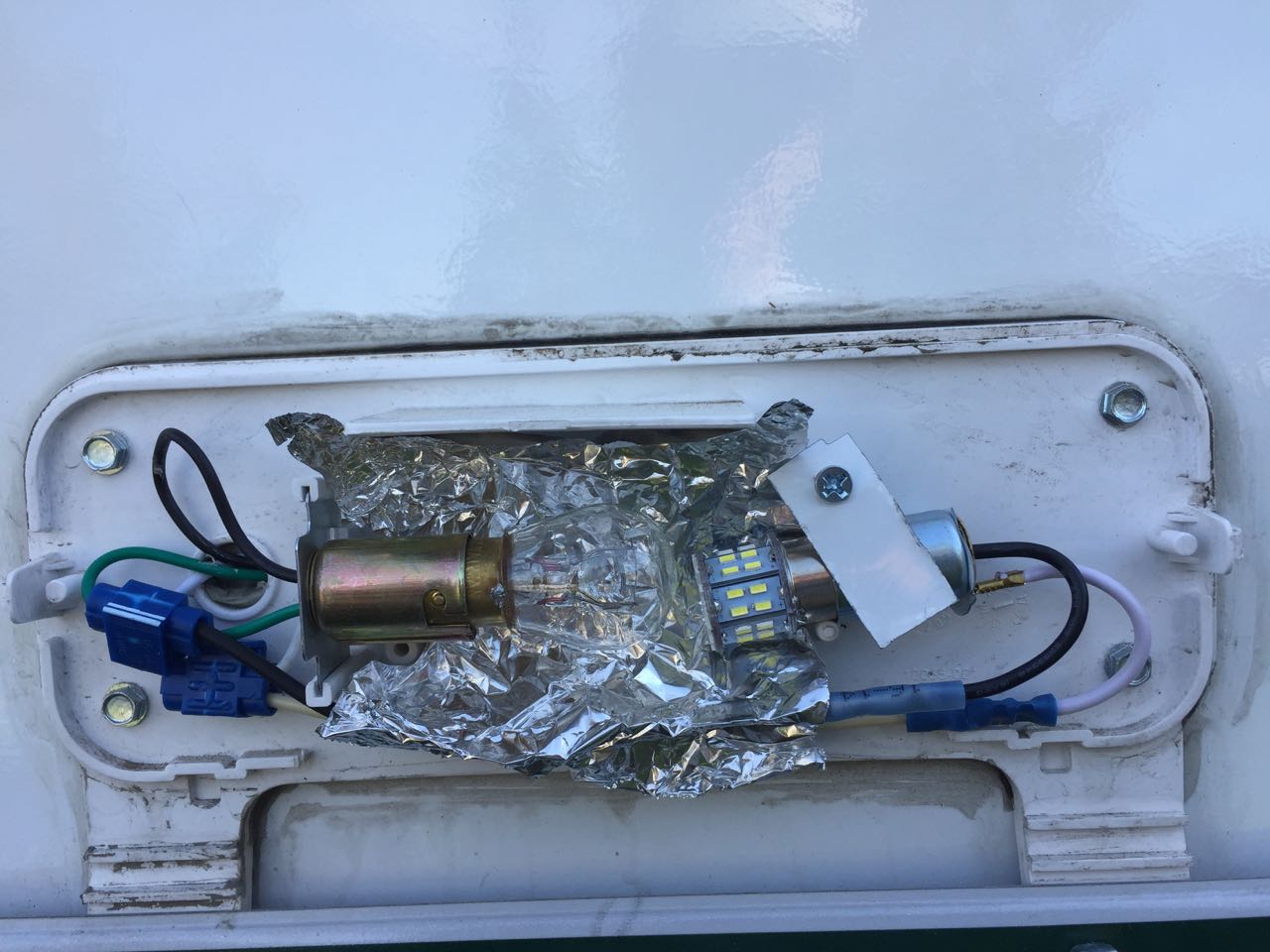

Two lights might be brighter than one. Plus foil because it’s fancy!
New entry light left of the speaker

I installed a new light in my coach near the front door plus I doubled the light output of the brake lights. You may recall I was going to install some used ambulance lights as brake lights because mine were so dim. I decided against that because at night they were weapons-grade brightness and I thought blinding drivers was a poor idea. I obtained some bulb holders and LED lamps so I installed those in the stock lens covers along side the original incandescent lamps. Now I have twice the light and a back-up in case one bulb goes out.

.

.

.

.

.

Advertisements

Repairs & Modifications: Plumbing Edition

New plumbing parts

A couple issues have been bothering me since the weather turned cold and they are:

1) Running the hot to get the shower ready wastes water. It takes a couple quarts to drain the cold out of the line and get the water hot at the shower head. I’d like to recapture that water and keep it fresh

2) Once the temp drops below 10ºF the lines in the coach begin to freeze. The water lines to the bathroom run outside the heated space for a few feet and they freeze around 10º. The water pick-up from the fresh water tank is below the tank, running between the tank and the insulating skin on the bottom of the coach. That line freezes around 4ºF

My previous coach was good to -30ºF and I would like to come closer to that operating ability than I am now. One way to do that would be to remove the bottom skin and re-plumb the coach, add insulation, etc, but for now I’m going to create a plumbing circuit that will address both issues.

If there is a flow of water it has to get a lot colder before it will freeze. Running streams don’t freeze as soon as still water so I built a water return circuit to get the hot water from near the shower faucet back to the fresh water tank.

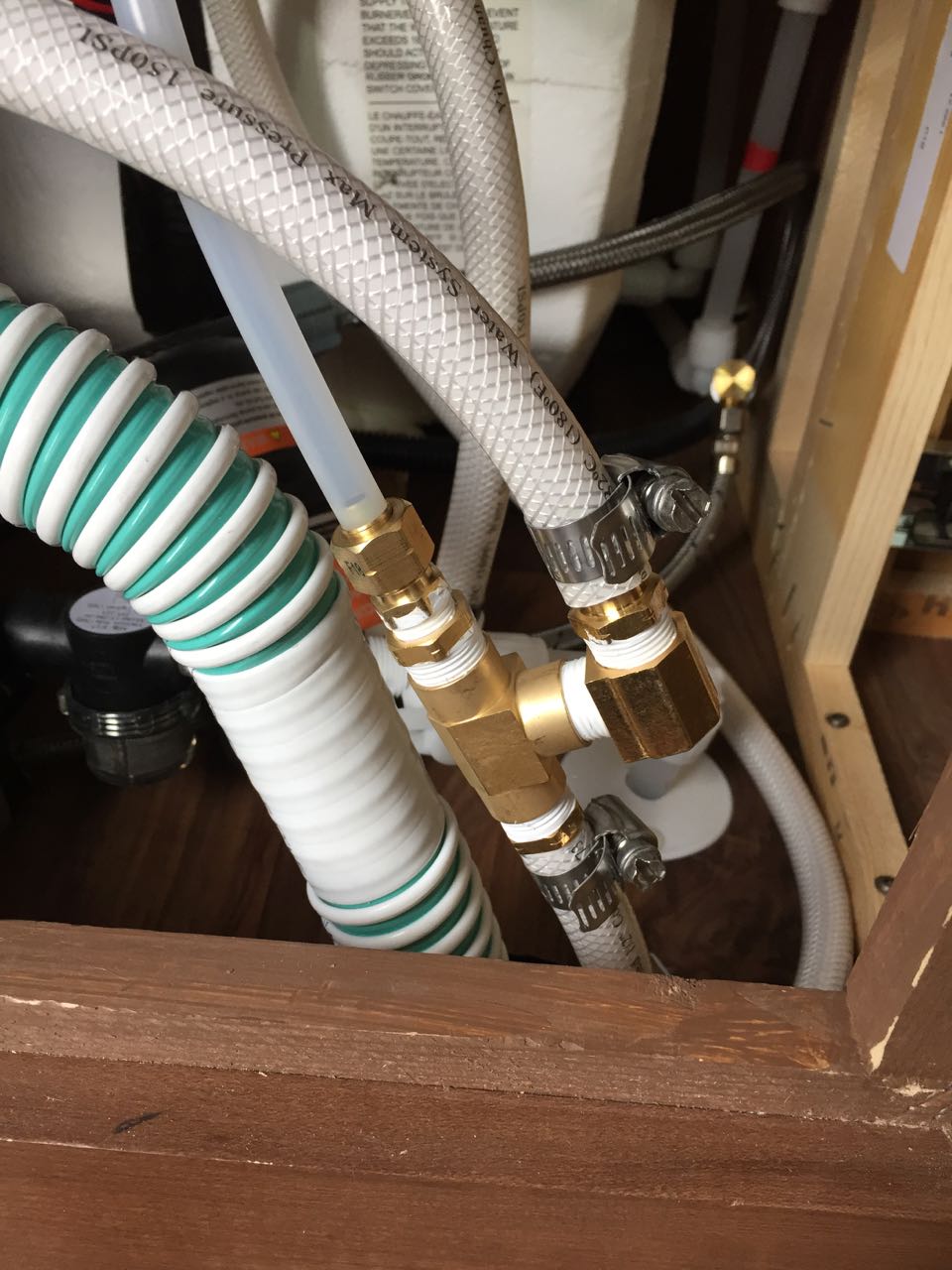

Tapped into the hot line just before the shower valve

I tapped into the hot water line near the shower with a custom made T- fitting then ran a 3/8” line to a ball valve in a place accessible from inside the coach. From the valve I ran the new water line forward through the cabinetry to the fresh water fill port. I tapped into the 1/2” vent line to the tank and connected the new water line to that.

Valve to control the flow from the hot (pressure) to the fresh tank (vent)

Now when I open the re-circulation valve the fresh water pump pushes water to the water heater, then to the shower, then at the T it flows to the valve (open position) then back to the fresh tank via the vent line.

Hot returns to the vent then into the tank

This keeps hot/warm water in the hot line all the time that the valve is open heating the pipe space and keeping the hot and cold lines from freezing. It also keeps water flowing through the fresh pick-up line (keeping it from freezing) and adds hot/warm water to the fresh water tank keeping that tank a lot warmer.

This system does required a 110V connection to keep the water pump supplied with power and to keep the water heater running on 110V. It would also work with the gas water heater system and enough 12V power to run the water pump 50% of the time.

If the re-circulation valve is opened just a tiny bit the water flows and the pump cycles on and off, running less than 50% of the time. The coach has an accumulator/ expansion tank on it to cut down on pump run-time.

When it’s not super-cold outside the re-circulation valve is only opened before I jump in the shower. It flushes the cold water out of the line and pumps it back into the fresh tank so I have hot water right away in the shower.

Since I’m in warm and sunny* California for the next few weeks I won’t have a chance to test the cold weather capabilities of the new system, but the shower pre-heat part works great!

.

*. By warm and sunny I mean 50ºF and raining a fair amount. It is however so much warmer than the -2ºF I drove thru to get here

.

.

.

.

.


Repairs & Mods – Suspension Edition

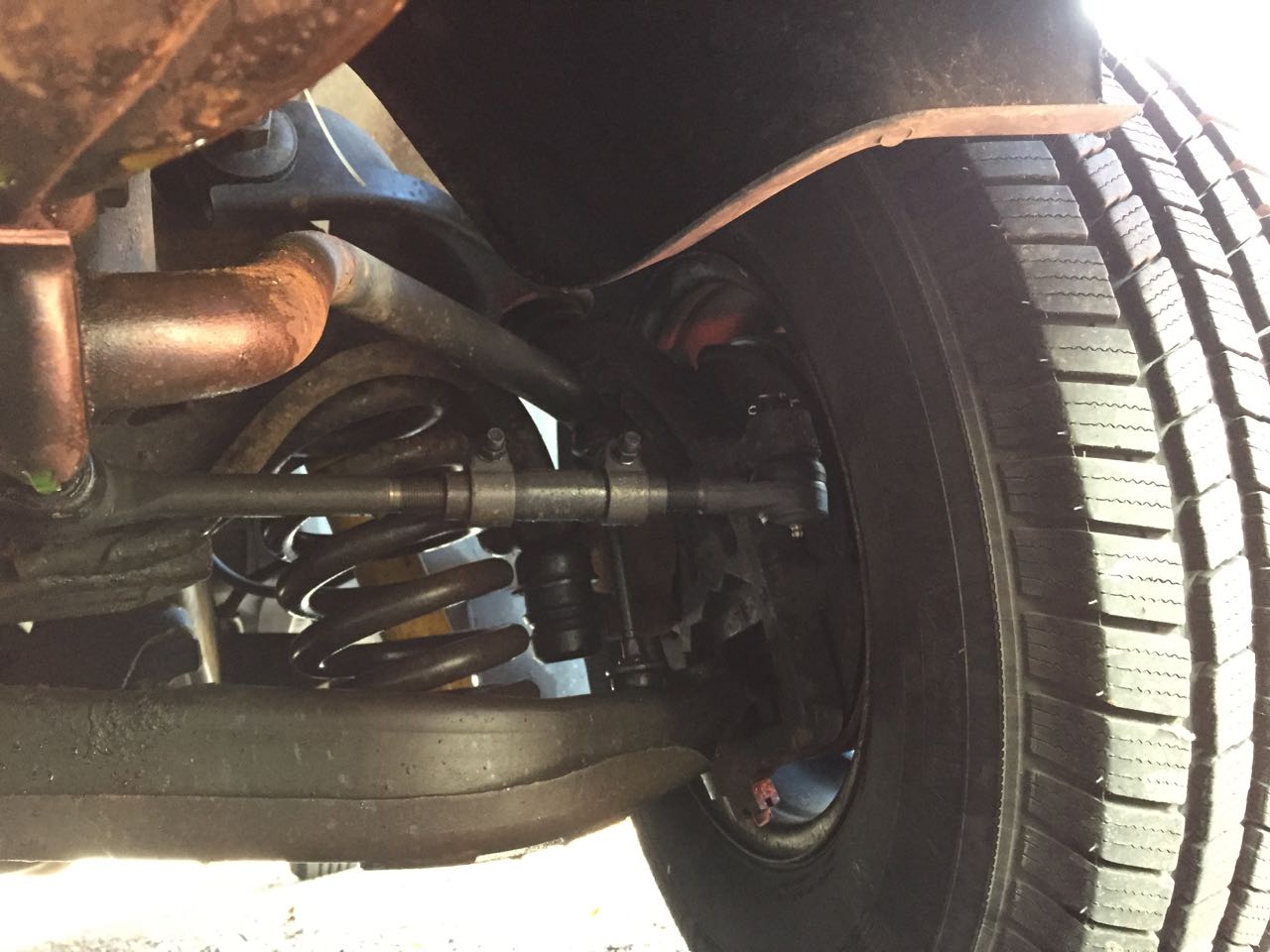

After 11,000 miles of pulling with the trailer low in the front and the truck dragging its butt on the pavement I decided to get some air springs to level out the system. I made an appointment at The Spring Works in Grand Junction and they installed some Firestone Ride Rite air springs.

IMG_2162

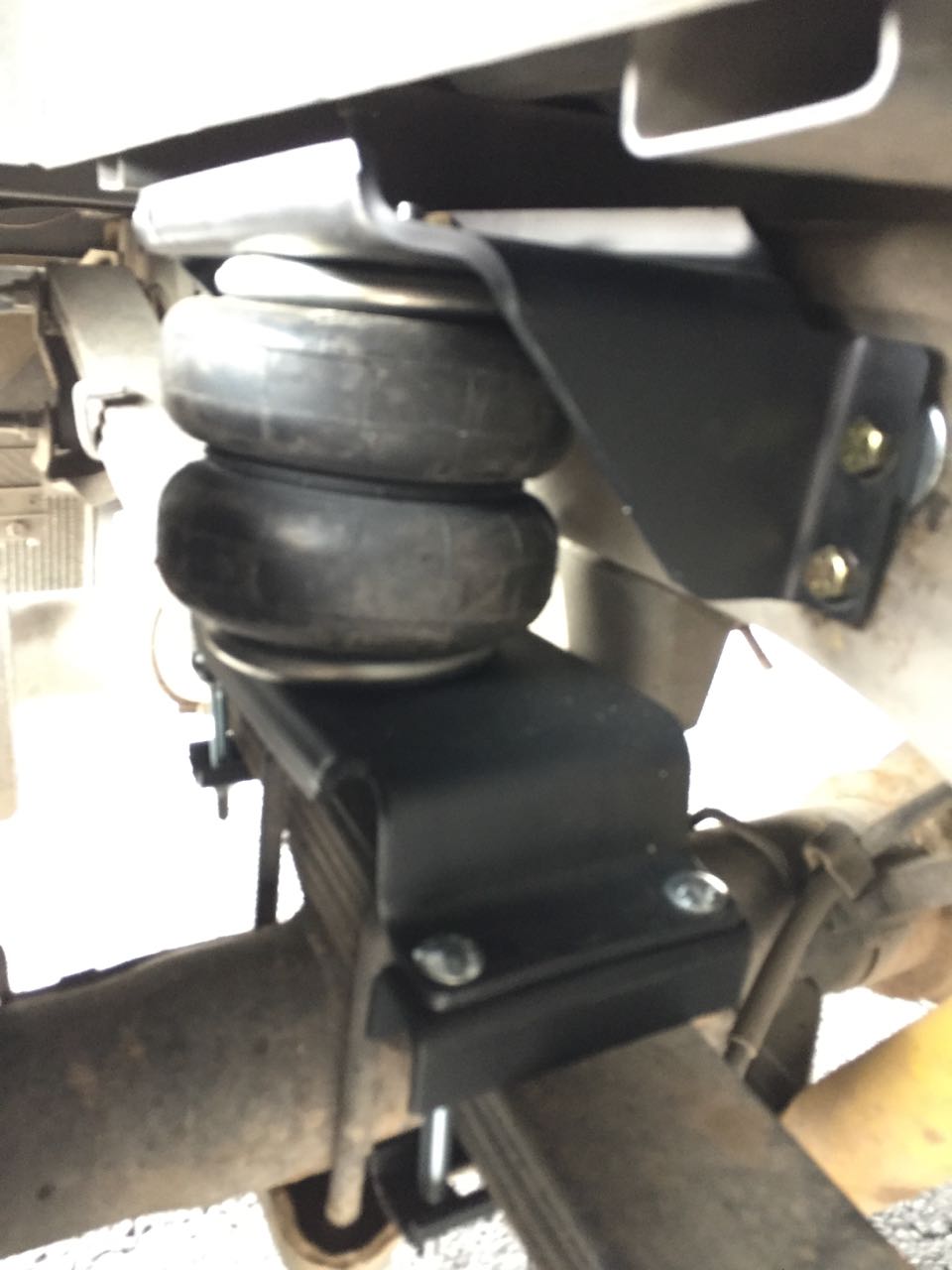

New Air Springs

I’ve decided to set the system up so that the ride height in the rear is the same loaded as it is when the truck is empty. Then add in the tension of the Wt Transfer hitch to bring the front down to where it was with the truck unloaded as per the Wt transfer hitch instructions.

IMG_2163

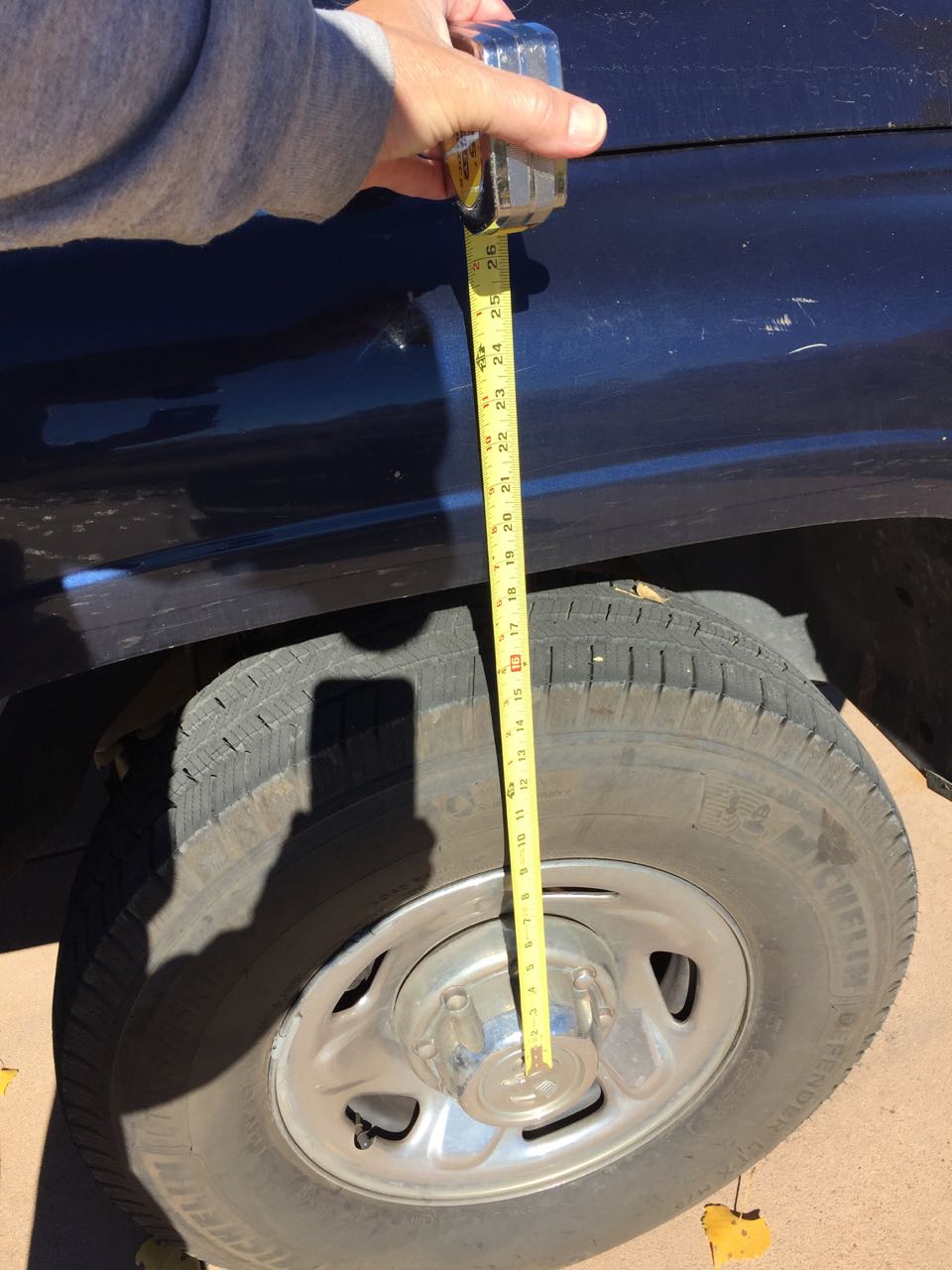

I started by measuring from a grove on the hub-cap to the edge of the fender well on all four wheels. The measurements are not all the same. There is about 1/2” difference from side-to-side. I suspect age as a factor in that. The front is about 2” less than the back which is to be expected.

Before air springs the trailer caused the truck to squat about 3.5” in the rear. After air springs (with 60 psi loaded. 50 psi unloaded) the air springs get the rear of the truck back up to where it belongs. Engaging the Wt Transfer torsion bars brings the front down to within 1/2” of where it was unloaded.

On the test drive the rear of the truck stayed put. It bobs WAY less than before and the ride up front is better. The front still bobs up-and-down when we drive over a rough spot in the road, but the energy needs to go somewhere.

For those of you keeping score at home this brings the truck’s trailer-towing modifications and repairs to about $12,000.
